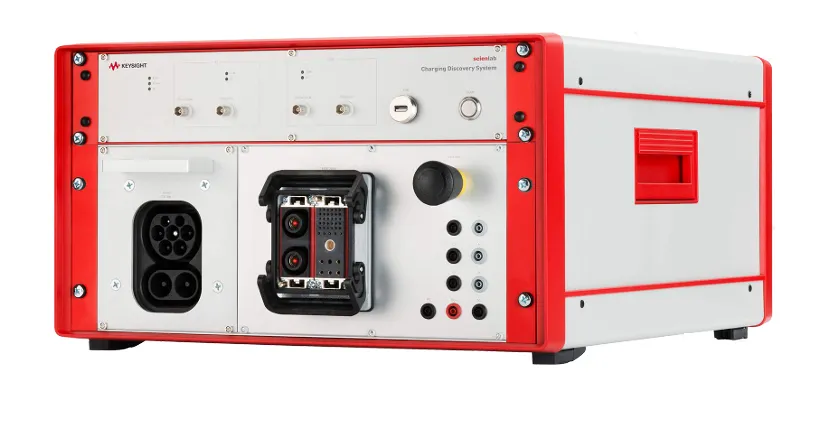

Keysight SL1040A Scienlab Lade-Erkennungssystem
Keysight SL1040A Scienlab Charging Discovery System
Angebot anfragen
Das Keysight SL1040A ist ein modulares EV/EVSE-Ladetestsystem, das CCS-, CHAdeMO- und GB/T-Standards mit einer maximalen Leistung von 400 kW unterstützt.
Produktdetails
| Modell | SL1040A |
| Hersteller | Keysight |
| Kategorie | Batterietester und -analysatoren |
| Verfügbarkeit | Auf Anfrage |
Beschreibung
Übersicht
Das Keysight Scienlab Lade-Erkennungssystem (CDS) ist eine umfassende Testlösung für alle AC- und DC-Ladeschnittstellen von Elektrofahrzeugen (EVs) und Elektrofahrzeug-Ladeeinrichtungen (EVSE). Das modulare und innovative Design ermöglicht die Konfiguration für spezifische Testanforderungen und ersetzt mehrere echte EV/EVSE-Einheiten durch eine einzige, kostengünstige Testplattform.
Wichtigste Funktionen
- Modulares Design mit Unterstützung für CCS (IEC 61851/SAE J1772, DIN SPEC 70121, ISO 15118), CHAdeMO (v0.9, v1.x, v2.0) und GB/T Standards
- Bis zu 400 A @ 1000 V DC (400 kW Ladeleistung)
- Automatisierte funktionale, Konformitäts-, Interoperabilitäts- und Qualitäts-Tests für F&E-, EOL- und EMV-Anwendungen
- Echtzeit-Man-in-the-Middle-Modus für Interoperabilitätsanalyse
- Umfangreiche Testfall-Bibliothek für automatisierte Compliance-Tests
- Zeitsynchronisierte Messung und Signaldecodierung für Kommunikations- und Energiesignale
Anwendungen
- EV- und EVSE-Ladeschnittstellen-Validierung und Zertifizierung
- Konformitätstests gegen internationale Ladestandards (CCS, CHAdeMO, GB/T)
- EMV- und elektromagnetische Kompatibilitätstests in reflexionsarmen Kammern
- Hardware-in-the-Loop (HiL)-Systemintegration über LAN-Schnittstelle
- Prototyp-Leistungsverifikation vor der Markteinführung
Technische Daten
| High Performance for All Your Applications | The Scienlab Charging Discovery System from Keysight covers all test areas as an all-in-one system: ▪ Independent, reproducible test of any EV and EVSE charging interface through real-time emulation of all electrical interfaces (incl. communication signal and energy transfer) of counterpart ▪ Automated verification of product performance and prototypes (incl. fault conditions) long before market release ▪ Real-time person-in-the-middle mode for easy analysis of interoperability issues between EV and EVSE ▪ Integration into custom Hardware in the Loop (HiL) solutions through open and fully documented remote interface (LAN) |
| Scienlab Charging Discovery System Family of Solutions | With Scienlab Charging Discovery System – Portable, EMC and High-Power Series, Keysight helps you comply with the relevant charging standards and ensures conformance and interoperability: ▪ Provides independent, reproducible test of any EV and EVSE charging interface ▪ Includes real time person-in-the-middle mode for easy analysis of interoperability issues between EV and EVSE ▪ Designed for use in anechoic test chambers and enables conducted and radiated testing of emissions and immunity during AC or DC charging (only EMC Series) ▪ Enables you to test current and future standards at up to 900kW (only High-Power Series) |
| Get Ready for All Norms and Standards Worldwide | With the Charging Discovery System it is very easy to secure your charging technology products for the global market. ▪ Verification of charging components for international markets through emulation of charging communication standards and low-voltage grids ▪ Covers all charging and EMC standards and norms: EN 61851-21-2, EN 55011, CISPR 25 Ed., TL81000 ▪ Verification of charging columns, wall boxes and vehicles for compliance with norms |
| Feature | Parameter |
| Up to 400 kW Charging Power | 400 A @ 1000 V DC |
| Support of CCS | IEC 61851/SAE J1772 DIN SPEC 70121 ISO 15118 |
| Support | CHAdeMO v0.9, v1.x and v2.0; GB/T 18487 and 27930-2011/2015 standards |
| Extensive Test Cases Library | supports automated compliance testing of all standards |
| Powerful and Intuitive Software | For test analysis and system operation |
| Module | Description |
