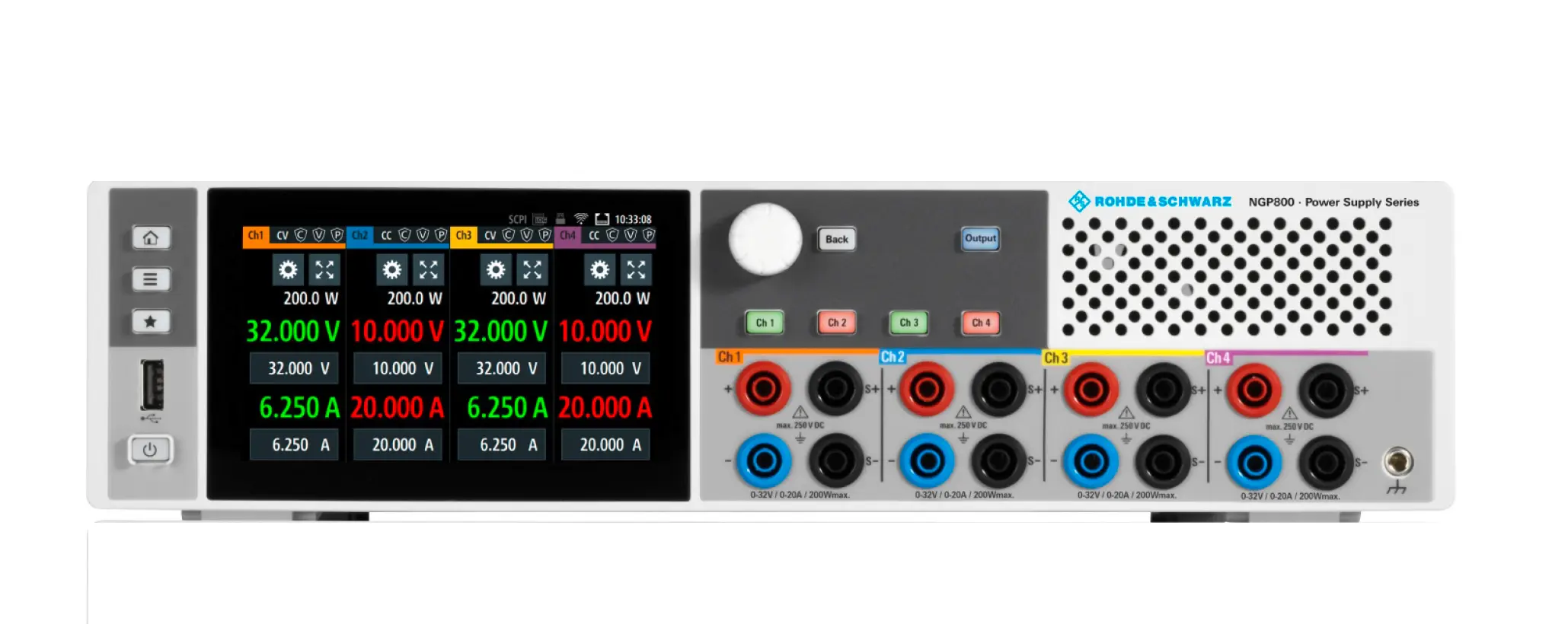

Rohde & Schwarz NGP824COMB Gleichstromversorgung
Rohde & Schwarz NGP824COMB DC Power Supply
Angebot anfragen
Die Rohde & Schwarz NGP824COMB ist eine 4-Kanal 800W Gleichstromversorgung mit integrierten digitalen Trigger-E/A- und Analogeingangsfähigkeiten.
Produktdetails
| Modell | NGP824COMB (5601.4007P98) |
| Hersteller | Rohde & Schwarz |
| Kategorie | Stromversorgungen und elektronische Lasten |
| Verfügbarkeit | Auf Anfrage |
Beschreibung
Übersicht
Das Rohde & Schwarz NGP824COMB ist ein Aktionspaket, das die vierkanalige Gleichstromversorgung NGP824 mit Modulen für digitale Trigger-E/A und Analogeingang kombiniert. Diese Konfiguration ermöglicht integrierte Automatisierung und externe Signalverarbeitung für fortgeschrittene Testszenarien ohne separate Modulinstallation.
Hauptmerkmale
- NGP824-Basisgerät: 4 Kanäle, 800W Gesamtausgangsleistung
- 0-64V/10A pro Kanal mit flexiblen Stromkombinationen
- 5-Zoll-Touchscreen-Display (800×480 WVGA) für intuitive Bedienung
- Integrierte Messungen: Spannung, Strom, Leistung, Energieanalyse
- Integrierte Datenspeicherung mit Echtzeit-CSV-Export
- Digitales Trigger-E/A-Modul (NGM-K103) für Sequenzsteuerung
- Analogeingangmodul (NGM-K107) für externe Signalintegration
- QuickArb-Funktionsgenerator für beliebige Wellenformen
- Reihenschaltung/Parallelschaltung von Kanälen bis 250V/80A
- USB- und LAN-Fernsteuerungsschnittstellen
Anwendungen
- Automatisierte Testsysteme mit externem Triggern
- Designverifizierung und Gerätecharakterisierung
- Simulation und Prüfung von Stromversorgungssystemen
- Produktionsqualitätssicherung und Validierung
Technische Daten
| NGP824COMB | 5601.4007P98Power SupplyWorldwideOutput channels 4 Max. output power 800 W NGP824: 64V/10A; K103: digital trigger I/O; K107: analog input |
| Touch Display | The large high-resolution touch display makes operation easy. Quickly navigate through the menus to access all functions and settings. Enter values much faster using the virtual keyboard instead of turning the knob. The home screen gives you a clear overview of all your channels. Each channel can be selected for a more detailed view with a wide variety of additional information, such as statistics and icons indicating the status of set protection or special functions. |
| Flex Power | Get the maximum power at various operating points. Unlike with single range power supplies, you can generate variable voltage and current combinations within the overall power limit of 200 W per channel. |
| Parallel & Serial Operation | If your application requires more voltage or current, simply connect the outputs in series or parallel and get up to 250 V (NGP824) or 80 A (NGP804) – now you have the flexibility you always asked for. Using the tracking function, voltage and current are adjusted on all selected channels simultaneously. |
| Built-in Measurements | The built-in measurements reduce the need for an external multimeter and simplify the setup. The separate voltage and current meters on each output give a resolution of 1 mV and 0.5 mA over the full output range of 64 V and 20 A, respectively. The integrated statistics show the min./max. and average values for power, voltage and current as well as an energy count. |
| Data Logging | Logging data is key to long-term monitoring, reviewing test setups and repeating test conditions when analyzing power behaviors or optimizing power consumption. The NGP800 power supplies simultaneously log voltage and current measurements over time on all outputs. You can easily export the timestamped data as a .CSV file for reports and documentation. |
| Arbitrary Function | Emulate the normal behaviors of your power subsystems early in the design process and simulate power problems for DUT design verification. The QuickArb function lets you generate voltage and current sequences that vary over time with dwell times down to 1 ms. Load up to eight subgroup files into one sequence to create complex patterns. |
| Graphical View | The Graphical View function allows fast and convenient analysis, especially of changing processes, such as charging and discharging or switching between different operating states of a DUT. Integrating all measurements in one box not only reduces the complexity of the test setup, but also ensures the integrity and correlation of all measurements by design. |
| Remote Control via VNC Client | Via VNC connection the NG800 power supplies can be controlled and operated from any location. All functions that can be reached by analog operation can also be accessed via remote control by VNC. The connection between power supply and PC can be established via LAN in the same network. |
| Features | Parameters |
| NGP824 | 5601.4007.034800 W0 V to 64 V0 A to 10 A |
