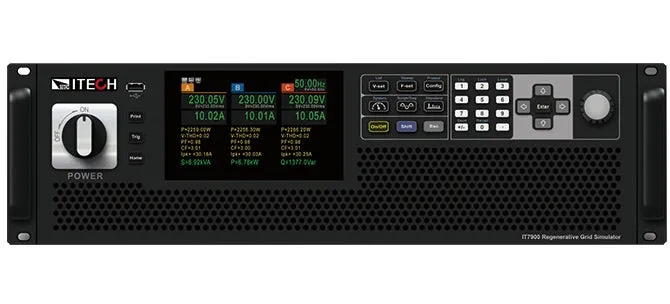

ITECH IT7915-350-90 regenerativer Netzsimulator
ITECH IT7915-350-90 Regenerative Grid Simulator
Angebot anfragen
ITECH IT7915-350-90 15 kVA programmierbare vier-Quadranten-Netzsimulator mit 350V/90A-Ausgang, 0,1% Genauigkeit, unterstützt netzgebundene und netzunabhängige Geräteprüfung.
Produktdetails
| Modell | IT7915-350-90 |
| Hersteller | ITECH |
| Kategorie | Stromversorgungen und elektronische Lasten |
| Verfügbarkeit | Auf Anfrage |
Beschreibung
Übersicht
Das ITECH IT7915-350-90 ist ein 15 kVA programmierbarer vier-Quadranten-regenerativer Netzsimulator aus der IT7900-Serie. Er funktioniert als Netzsimu lator und Leistungsverstärker für die Prüfung von netzgebundenen Geräten, Energiespeichersystemen, Mikronetzen und Stromwandlungssystemen. Das Gerät bietet hohe Leistungsdichte mit 15 kVA in 3U-Bauform und unterstützt Parallelverbindung für erweiterte Leistungsbeiwerte bis zu 960 kVA.
Wichtigste Funktionen
- Vier-Quadranten-regenerativer Betrieb mit 100% Strombeiwertung in Quellen- und Senken-Modi
- 15 kVA Leistung mit 350 V / 90 A Ausgang, 0,01V/0,01A Auflösung
- Genauigkeit: 0,1% + 0,1% FS (Spannung/Strom), 0,3% + 0,3% FS (Leistung)
- Hohe Leistungsdichte: 15 kVA in 3U Rack-Platz
- Programmierbare Ausgangsimpedanz für realistische Netzsimu lation
- Frequenzbereich 16–150 Hz mit einphasigem, dreiphasigem und umgekehrtem Phasenmodus
- Professioneller Anti-Inselbetrieb-Testmodus mit konfigurierbaren RLC-Parametern
- Mehrere Kompatibilitäts-Testmodi: LVRT, Phasensprung, Frequenzvariation, Oberharmonischeninjektion
- Unterstützt IEC 61000-4-11/4-13/4-14/4-28 Regelkonformitätsprüfung
- Master/Slave-Parallelverbindung: bis zu 64 Einheiten für 960 kVA Gesamtleistung
- Wellenformmodi: Sinus, Dreieck, Sägezahn, Rechteck, Trapezoidal, abgeschnittener Sinus
- Datenspeicherung: bis zu 7 Stunden Dauaufzeichnung in 100 ms Intervallen
- Schnittstellen: USB, CAN, LAN mit SCPI-Protokoll; optional GPIB, Analog, RS-232
Anwendungen
- Netzgebundener Inverter- und Photovoltaikanlagen-Prüfung
- Energiespeichersystem (ESS) und Batterie-Wandler-Prüfung
- Mikronetz- und Verteilte-Erzeugungsprüfung
- Stromqualitätssimulation und Konformitätsprüfung
- Phasensprung-, Frequenzvariation- und Oberharmonischeninjektion-Prüfung
- Verifikation des Anti-Inselbetriebsschutzes
- Hardware-in-the-Loop (HIL) und Power Hardware-in-the-Loop (PHiL) Anwendungen
Technische Daten
| Regenerative 4-Quadrant AC Grid Simulator | The IT7900 series represent the newest generation of programmable, full four-quadrant grid simulators with full 100% of current rating in both source and sink mode, and provides energy recovery capability. The power generated by the DUT during the test can be easily fed back to the AC grid, rather than being dissipated as heat,which protects the environment and lowers the cost of operation. It can be applied to the applications in testing grid-tied products that inject energy into the grid, such as the frequency changes, voltage transients and DC injection of grid-tied/off-grid inverters testing. |
| Full 4-Quadrant Power Amplifier | The IT7900 series regenerative grid simulator can be used as a power amplifier to complete power hardware in the loop (PHIL) applications for microgrids, energy storage and new energy vehicles. The digital I/O or a standard suite of analog signal can be input via an external analog interface (optional) and then amplified without distortion to a real power waveshape with an external analog response time of less than 200us. |
| Anti-Islanding Test Mode | To meet the certification test of anti-islanding effect for grid-tied products, the IT7900 series provide a professional anit-islanding test mode. Users can adjust RLC parameters or configure the parameters of active power and reactive power to achieve the effect of simulating purely resistive or nonlinear grid loads, and further verify the anti-islanding protection response time of grid-tied DUTs under different equivalent impedances, three-phase load balancing and non-balancing conditions. The solution helps engineers to simplify the test circuit and cost savings of additional equipment such as oscilloscopes and power meters. |
| Master/Slave Parallel, Power up to 960kVA | IT7900 series can be master-slave paralleled to get higher current and power. Maximum 64 sets can be paralleled to reach 960kVA, the parallel is flexible and convenient. IT7900 comes with synchronous On/Off input and output signals, which ensure the synchronization of paralleling and ensures synchronous current sharing of multiple modules. After paralleling, all functions are retained and there’s no loss of accuracy, making the construction of the power system faster, more flexible, and more economical, either it is a stand-alone test or ATE system. |
| Trend Analysis | Thanks to the function of large data recording, IT7900 series is capable of recording up to 7 hours of continuous data at short intervals (fastest: 100ms). And it’s easy to view the complete curve generating from the start to the end of the test by the mode ‘trend’. There are six curves that can be displayed at the same time at most. In addition, you can slide the vernier calipers on the screen to check the exact data at a particular point in the current trend curves. It is useful for analyzing errors during test for a long time or inflection points during loading, etc. Besides, you can export the test data for further analysis by a USB. |
| Built-in Various Type of Distorted Waveforms | In addition to sine waveform, IT7900 series provides various standard AC waveforms, such as triangular wave, sawtooth wave, square wave, trapezoidal wave and clipped sine wave. These waves can be easily recall from the menu and displayed in the LCD touch screen. Moreover, in combination with sequence programming function, users can realize multiple waveform continuous output, to cope with complex power line disturbance test. |
| IT7915-350-90 | 350 V90 A15kVA0.01V/0.01A＜0.1%+0.1%FS/＜0.3%+0.3%FSUSB, CAN, LAN, digital I/O, optional GPIB / analog & RS232 3 u |
