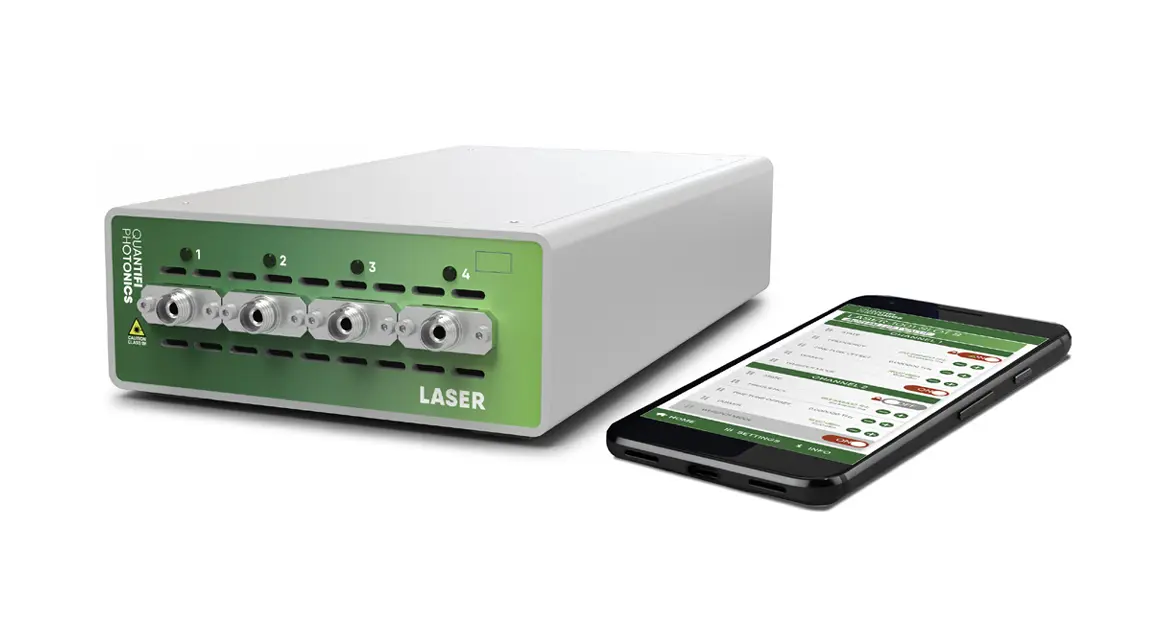

Quantifi Photonics LASER-1052-4-FA-MTRQ abstimmbare Laserquelle
Quantifi Photonics LASER-1052-4-FA-MTRQ Tunable Laser Source
Angebot anfragen
Quantifi Photonics LASER-1052-4-FA-MTRQ ist eine Vierkanal C-Band abstimmbare Laserquelle mit 0.01 pm Auflösung, 100 kHz Linienbreite und 8–15 dBm Leistung im kompakten MATRIQ Benchtop Design.
Produktdetails
| Modell | LASER-1052-4-FA-MTRQ |
| Hersteller | Quantifi Photonics |
| Kategorie | Netzwerk- und Faseroptik-Prüftechnik |
| Verfügbarkeit | Auf Anfrage |
Beschreibung
Überblick
Der Quantifi Photonics LASER-1052-4-FA-MTRQ ist eine Vierkanal abstimmbare Laserquelle im MATRIQ kompakten Benchtop Format, Teil der Laser 1000 Serie. Es liefert Dauerstrich-Ausgang über das C-Band (1527–1568 nm) auf jedem der vier unabhängigen Kanäle mit außergewöhnlicher Wellenlängenstabilität und bietet flexible Mehrkanaltest-Fähigkeiten in einem tragbaren, benutzerfreundlichen Design.
Wichtigste Funktionen
- Vierkanal C-Band Abstimmbarkeit (1527–1568 nm) für unabhängige oder synchronisierte Betriebsweise
- 0.01 pm Wellenlängen-Abfrequenzauflösung pro Kanal
- Enge 100 kHz Linienbreite mit Ausgangsleistung bis zu 15 dBm pro Kanal
- Whisper Mode zum vorübergehenden Deaktivieren der Frequenzoszillation für engste Linienbreite
- Polarisationserhalten Ausgang mit FC/APC Konnektoren auf allen Kanälen
- Verbesserte Leistungsuniformität über alle Kanäle
- USB oder Ethernet Konnektivität für einfache Installation und Steuerung
- Web-basierte GUI und SCPI Programmierbarkeit mit Python und LabVIEW Unterstützung
- Kompaktes Benchtop Design spart Laborplatz
Anwendungen
- Kohärente optische Transceiver Entwicklung und Tests mit mehreren Kanälen
- Optische Komponententests (Splitter, Koppler, Modulatoren, Resonatoren)
- Glasfaser-Übertragungstests
- WDM und DWDM Mehrkanalstress-Tests und Kanallast
- Silicon Photonics Wafer und Wellenleitermessung mit mehreren Testpunkten
- EDFA optischer Verstärkertest mit mehreren Wellenlängen
- Interferometrie und Mach-Zehnder Instrumentenaufbauten
Technische Daten
| Full Tunability across C Band or L Band | Ideal for telecommunications applications; full coverage of DWDM channels. |
| Smarter Calibration for Enhanced Power Uniformity | Minimize inter-channel power variance with enhanced power uniformity between channels. |
| 0.01pm Tuning Resolution | Tune to anywhere within C or L band with a high 0.01pm tuning resolution. |
| Narrow 100kHz Linewidth, up to 16.5 dBm of Power | High stability 100kHz linewidth makes it an ideal candidate for some of the most demanding applications, such as coherently modulated high-speed communications. |
| Polarization Maintaining Output | The slow axis of polarization is aligned with the output connector key as per industry standards. The user may choose to use polarization maintaining (PM) fiber or standard singlemode fiber (SMF). |
| Powerful Software Controls | The Laser 1000 Series is fully programmable via industry standard SCPI protocols and drivers are available for Python and LabVIEW. It also comes with an easy-to-use GUI that can be used on any device with a modern web browser. |
| USB or Ethernet Operation | Connect via USB or Ethernet for simple setup and operation. |
| Excellent Measurement Correlation with our Optical PXI Modules | Shared product architecture lets you validate your system and test requirements in the lab with the benchtop version, and scale up to high-volume automated production testing with the Laser 1000 Series PXIe module. |
| Model Type | PxiMatriq |
| Bus Connection | PXIeUSB and Ethernet |
| Optical Connector Type | FC/PC FC/APC SC/PC SC/APC FC/PC FC/APC SC/PC SC/APC |
| Number of Channels | 1, 2 or 41, 2 or 4 |
| Slot Count | 1-- |
| Dimensions (HxWxD) | 130 x 20 x 215 mm 5.1 x 0.8 x 8.5 inches 53 x 120 x 202 mm 2.1 x 4.7 x 8.0 inches |
| Weight | ~ 1 kg ~ 2.2 lbs ~ 1.1 kg ~ 2.4 lbs |
| Operating Temperature Range | 5 °C to 45 °C 41 °F to 113 °F 5 °C to 45 °C 41 °F to 113 °F |
| Storage Temperature Range | -40 °C to 70 °C -40 °F to 158 °F -40 °C to 70 °C -40 °F to 158 °F |
| Model (LASER-XXXX) | Description |
| 1052 | 1527 - 1568 nm, 8 - 15 dBm With Whisper Mode |
| 4 | 4 channels |
| FA | FC/APC |
| Laser-XXXX-X-XX-MTRQ | MATRIQ - Compact & Portable |
