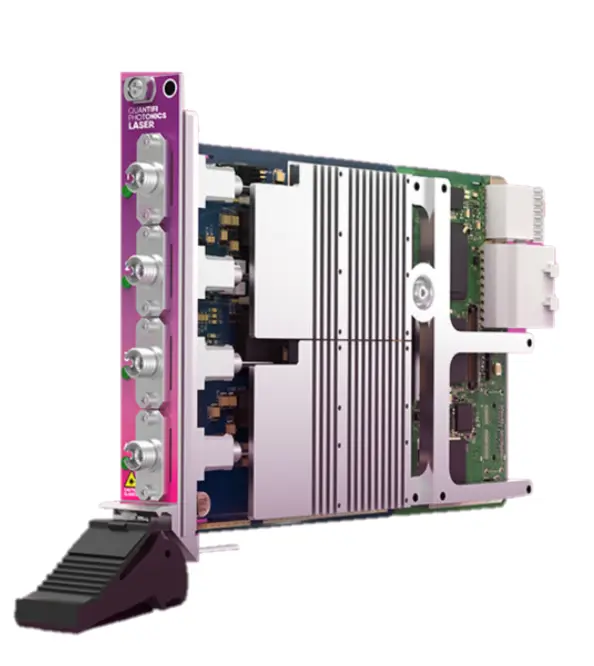

Quantifi Photonics LASER-1002 2-Kanal Durchstimmbarer Laser (PXIe)
Quantifi Photonics LASER-1002 2-Channel Tunable Laser (PXIe)
Angebot anfragen
Quantifi Photonics LASER-1002 ist ein durchstimmbarer Dauerlaser mit 0,01 pm Auflösung, 100 kHz Linienbreite und 8–15 dBm Ausgangsleistung über C-Band-Wellenlängen.
Produktdetails
| Modell | LASER-1002-2-FA-PXIE |
| Hersteller | Quantifi Photonics |
| Kategorie | Netzwerk- und Faseroptik-Prüftechnik |
| Verfügbarkeit | Auf Anfrage |
Beschreibung
Übersicht
Der Quantifi Photonics LASER-1002 ist eine durchstimmbare Laserquelle mit kontinuierlicher Welle (CW), entwickelt für Telekommunikations- und optische Test-Anwendungen. Teil der Laser 1000 Serie, liefert dieser vollständig konforme Micro-ITLA Laser hohe Stabilität und Präzision über C-Band-Wellenlängen mit bis zu 15 dBm Ausgangsleistung und 0,01 pm Abstimmauflösung.
Wichtigste Merkmale
- Vollständige Abstimmbarkeit über C-Band (1527–1568 nm) mit 0,01 pm Auflösung
- Schmale 100 kHz Linienbreite für kohärente Kommunikation und hohe Stabilitäts-Anwendungen
- Ausgangsleistungs-Bereich: 8–15 dBm mit verbesserter Leistungsgleichmäßigkeit über Kanäle
- Polarisationserhaltender Ausgang mit industrie-standardisierten optischen Steckern
- Vollständig programmierbar über SCPI Protokolle mit Python und LabVIEW Treibern
- Webbasierte GUI Kontroll-Schnittstelle für einfache Bedienung
- USB oder Ethernet Konnektivität für einfache Einrichtung und Integration
Anwendungen
- Entwicklung und Test von kohärenten optischen Transceivern
- Optische Komponenten-Tests (Splitter, Koppler, Modulatoren, Resonatoren, MEMs)
- Faseroptische Transmissionsprüfung und WDM/DWDM Kanal-Laststress-Test
- Lokaloszillator für kohärente Transceiver
- Silizium-Photonic Wafer- und Wellenleiter-Test
- EDFA optische Verstärker-Charakterisierung
- Photonic Doppler Velocimetry (PDV) Laser-Quelle
- Interferometrie und medizinische Bildgebungsanwendungen
- Stabile Lichtquelle für Telecom- und Physik-Forschung
Technische Daten
| Full Tunability across C Band or L Band | Ideal for telecommunications applications; full coverage of DWDM channels. |
| Smarter Calibration for Enhanced Power Uniformity | Minimize inter-channel power variance with enhanced power uniformity between channels. |
| 0.01pm Tuning Resolution | Tune to anywhere within C or L band with a high 0.01pm tuning resolution. |
| Narrow 100kHz Linewidth, up to 16.5 dBm of Power | High stability 100kHz linewidth makes it an ideal candidate for some of the most demanding applications, such as coherently modulated high-speed communications. |
| Polarization Maintaining Output | The slow axis of polarization is aligned with the output connector key as per industry standards. The user may choose to use polarization maintaining (PM) fiber or standard singlemode fiber (SMF). |
| Powerful Software Controls | The Laser 1000 Series is fully programmable via industry standard SCPI protocols and drivers are available for Python and LabVIEW. It also comes with an easy-to-use GUI that can be used on any device with a modern web browser. |
| USB or Ethernet Operation | Connect via USB or Ethernet for simple setup and operation. |
| Excellent Measurement Correlation with our Optical PXI Modules | Shared product architecture lets you validate your system and test requirements in the lab with the benchtop version, and scale up to high-volume automated production testing with the Laser 1000 Series PXIe module. |
| Model Type | PxiMatriq |
| Features | DescriptionDescription |
| Bus Connection | PXIeUSB and Ethernet |
| Optical Connector Type | FC/PC FC/APC SC/PC SC/APC FC/PC FC/APC SC/PC SC/APC |
| Number of Channels | 1, 2 or 41, 2 or 4 |
| Slot Count | 1-- |
| Dimensions (HxWxD) | 130 x 20 x 215 mm 5.1 x 0.8 x 8.5 inches 53 x 120 x 202 mm 2.1 x 4.7 x 8.0 inches |
| Weight | ~ 1 kg ~ 2.2 lbs ~ 1.1 kg ~ 2.4 lbs |
| Operating Temperature Range | 5 °C to 45 °C 41 °F to 113 °F 5 °C to 45 °C 41 °F to 113 °F |
| Storage Temperature Range | -40 °C to 70 °C -40 °F to 158 °F -40 °C to 70 °C -40 °F to 158 °F |
| Model (Laser - XXXX) | Description |
| 1002 | 1527 - 1568 nm, 8 - 15 dBm |
| 2 | 2 Channels |
| FA | FC/APC |
