EXFO SPSB-B-150-98-88 Startkabel für Tests
EXFO SPSB-B-150-98-88 Launch Test Cable
Angebot anfragen
EXFO SPSB-B-150-98-88 ist ein 150 m Singlemode-Testkabel für OTDR-Faserprüfung, ermöglicht Verlustvermessungen bei ersten und letzten Faserverbindungen.
Produktdetails
| Modell | SPSB-B-150-98-88 |
| Hersteller | EXFO |
| Kategorie | Netzwerk- und Faseroptik-Prüftechnik |
| Verfügbarkeit | Auf Anfrage |
Beschreibung
Überblick
Das EXFO SPSB-B-150-98-88 ist eine 150-Meter tragbare weiche Pulssupressor-Box für OTDR-Prüfungen (Optical Time-Domain Reflectometer). Sie ermöglicht präzise Verlustvermessungen an Faserverbindungspunkten durch Überbrückung der OTDR-Totzone des Geräts, was für genaue Faserstreckencharakterisierung und Installationsverifizierung erforderlich ist.
Hauptmerkmale
- 150 m Singlemode-Faser (9/125 µm) erweitert OTDR-Messbereich über die Totzone hinaus
- SC/APC-Anschlüsse für Kompatibilität mit den meisten OTDR- und Patch-Panel-Anschlüssen
- Verbindungseinführungsdämpfung < 0.5 dB für minimale Signalabschwächung
- APC-Verbindungsreflexion < –60 dB für genaue Rückstreumessungen
- Tragbare weiche Tragetasche für Feldeinsatz
- Reduziert OTDR-Verbindungsverschleiß durch Vermeidung direkter Kopplungen
Anwendungen
- Faseroptik-Streckencharakterisierung und Verlustmessung
- Akzeptanzprüfung bei der Installation von Fasernetzen
- Kabel-Fehlerbehebung und Wartung
- Verlustvermessung bei ersten und letzten Verbindungen in Faserstrecken
Technische Daten

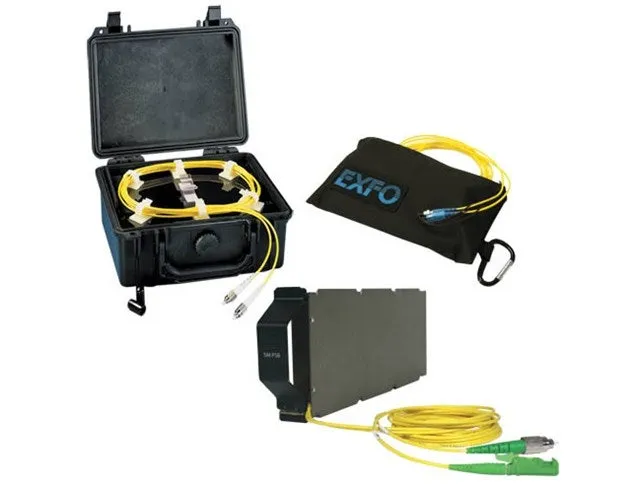

| Choice of Configurations | Typically, the length of an OTDR’s dead zone is equivalent to that of the optical pulse plus a few meters. The chosen launch test cable should therefore be longer than the pulse dead zone used for the tests. For instance, a 1 µs pulse is approximately 100 m long; selecting a 150 m SPSB or a 300 m LTC/PSB would therefore be appropriate. EXFO offers three types of launch cables: ▪ The FTB-LTC module combines with an FTB-7000 series OTDR module in the FTB-500 or FTB-200 platform ▪ The stand-alone PSB comes in a rugged, compact carrying case ▪ The portable SPSB comes in a soft, easy-to-carry-everywhere pouch |
| How it Works | Link characterization is often performed using an OTDR. But even though an OTDR has the shortest dead zones, because of the way loss is measured in a link, it does not allow the characterization of the first and last connectors without using a launch test cable, also called a pulse suppressor box. The loss value associated with an event is the difference between the backscattering levels measured before and after the event. To account for the OTDR’s dead zone, obtaining a backscattering level before the first connector requires inserting a certain length of fiber between the OTDR port and the first connector of the fiber under test. At the other end of the link, the same length of fiber is added after the last connector of the “receive” cable. In order to obtain an accurate, complete picture of the system’s loss—which is a critical aspect of fiber commissioning—a launch test cable should always be used at both ends of the fiber link. |
| Feature | Parameter |
| Feature | Description |
| SPSB-B-150 | Soft pulse suppressor bag, singlemode fiber 9/125, 150 m |
| 88 | SC/APC narrow key |
| 98 | LC/PC |
